Projects

End User – QATAR STEEL

Customer – SIEMENS WLL, Abu Dhabi

Project Details

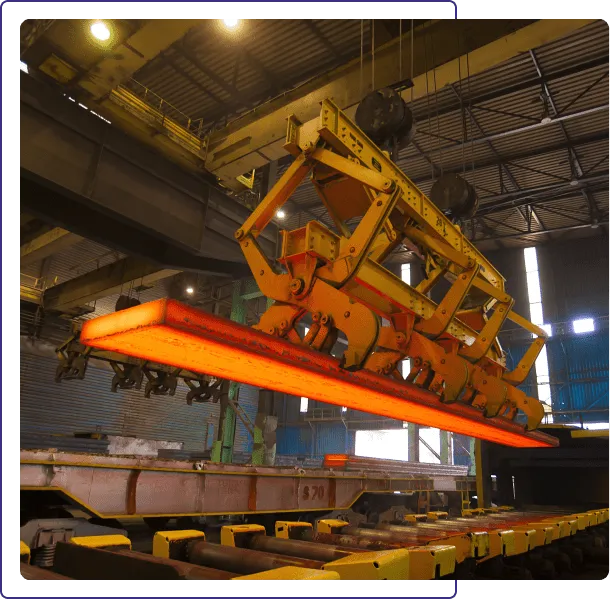

  • The hardware and design engineering of level 1 automation for Bar Mill process including 32 nos of panel comprising of PLC panels, RIO panels, local control panels and control desks.
  • High speed Bar Mill (20 mps) process design and engineering, software development & commissioning.
  • Sophisticated international standard control algorithm and graphical user interface with granular level data visualization, trending, alarm and warning system, diagnostics.

End User – SAIL, BOKARO STEEL PLANT

Customer – Fives Stein India Projects Pvt. Ltd.

Project Details

  • Design implementation and troubleshooting of automation network.
  • Identifying glitches in network and giving resolution e.g. to solve HMI redundancy problem.
  • Removing of Loops from the network and rearranging the IP Scheme.

End User – JINDAL STEEL PLANT LIMITED

Customer – Fives Stein India Projects Pvt. Ltd.

Project Details

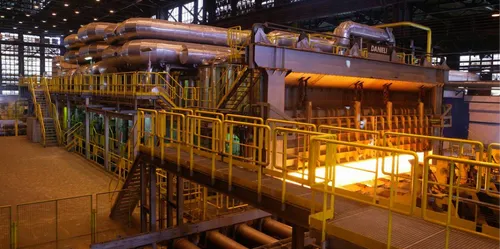

  • Logic & HMI development for Reheating furnace and tracking.
  • Software: RS Logix 5000 plant pax (Rockwell Automation), Factory Talk View 9.0.
  • Development of software and commissioning support,
  • PLC- Allen Bradley 1756-L75.​

End User – BHILAI STEEL PLANT

Customer – RRJ Designs & Consultancy Pvt. Ltd.

Project Details

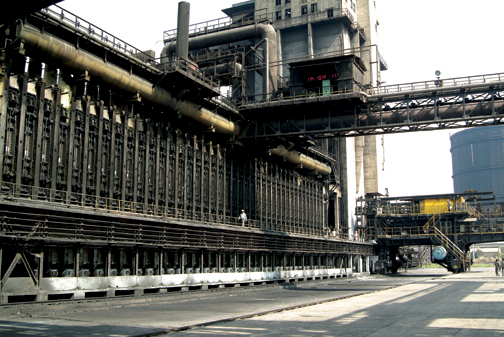

  • Post commissioning support for coke oven, battery no-11, and CDCP(Coke dry quenching plant).
  • Maintenance of software, required software modifications and WinCC modifications in PCS7 platform.
  • System- S7-400(H), PCS7 v8.2, WinCC 7.4.​

End User & Customer – B S ENGINEERING

Project Details

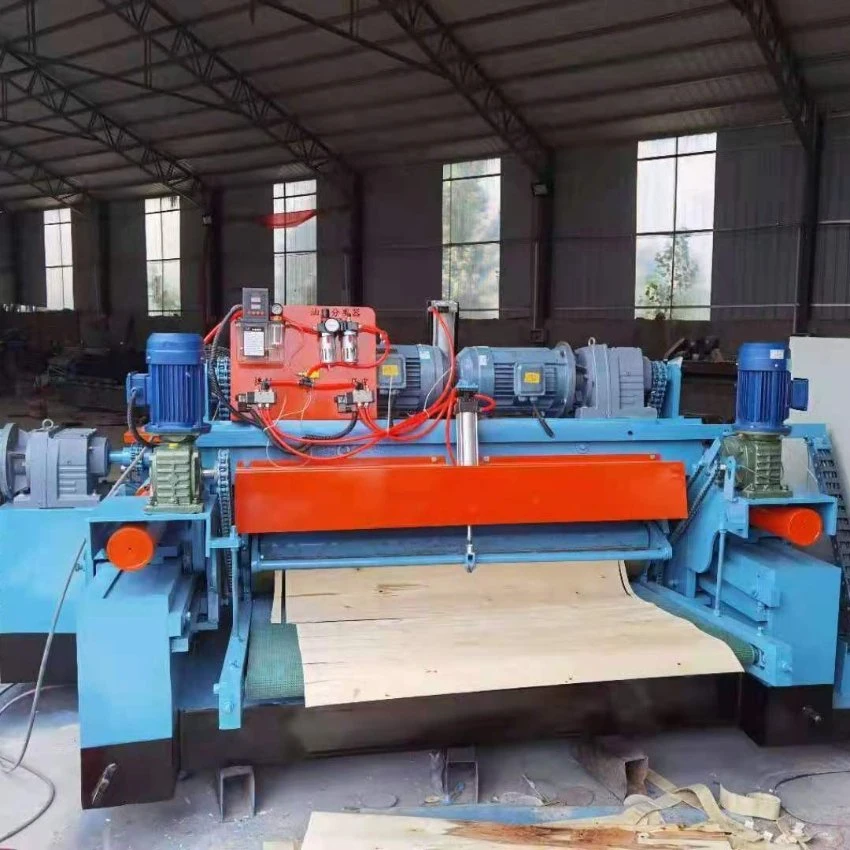

  • Electrical design engineering,  cable, earthing, lighting, LT power distribution, relay coordination for plywood & veneer plant installation in Nigeria.
  • Erection supervision and commissioning of electrical system.

End User – BOKARO STEEL PLANT-HOT STRIP MILL

Customer- Fives Stein India Projects Pvt. Ltd.

Project Details

  • Post commissioning support for reheating furnace 1.
  • Includes maintenance of software, required software modifications and WinCC modifications in PCS7 platform.
  • System- S7-400(H), PCS7 v8.0, WinCC 7.0.​

End User & Customer – CALCUTTA UNIVERSITY

Project Details

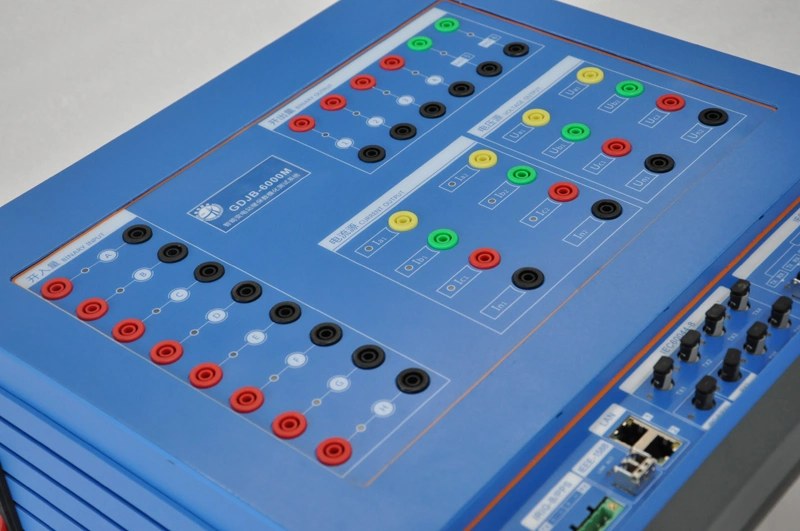

  • 400KW Smart Substation Simulation panel development, Alternator and Grid.
  • PID Control for automatic synchronization (Voltage, frequency and phase matching) of 3 phase generator (Alternator) and Grid.
  • HMI development of smart substation based 400KW simulation panel.
  • Implementation of SQL server.
  • Remote visualization of process data through networking (Both Ethernet and WIFI based mode).
  • Real time report generation of energy meter values in csv file format to the server.​

End User & Customer – CALCUTTA UNIVERSITY

Project Details

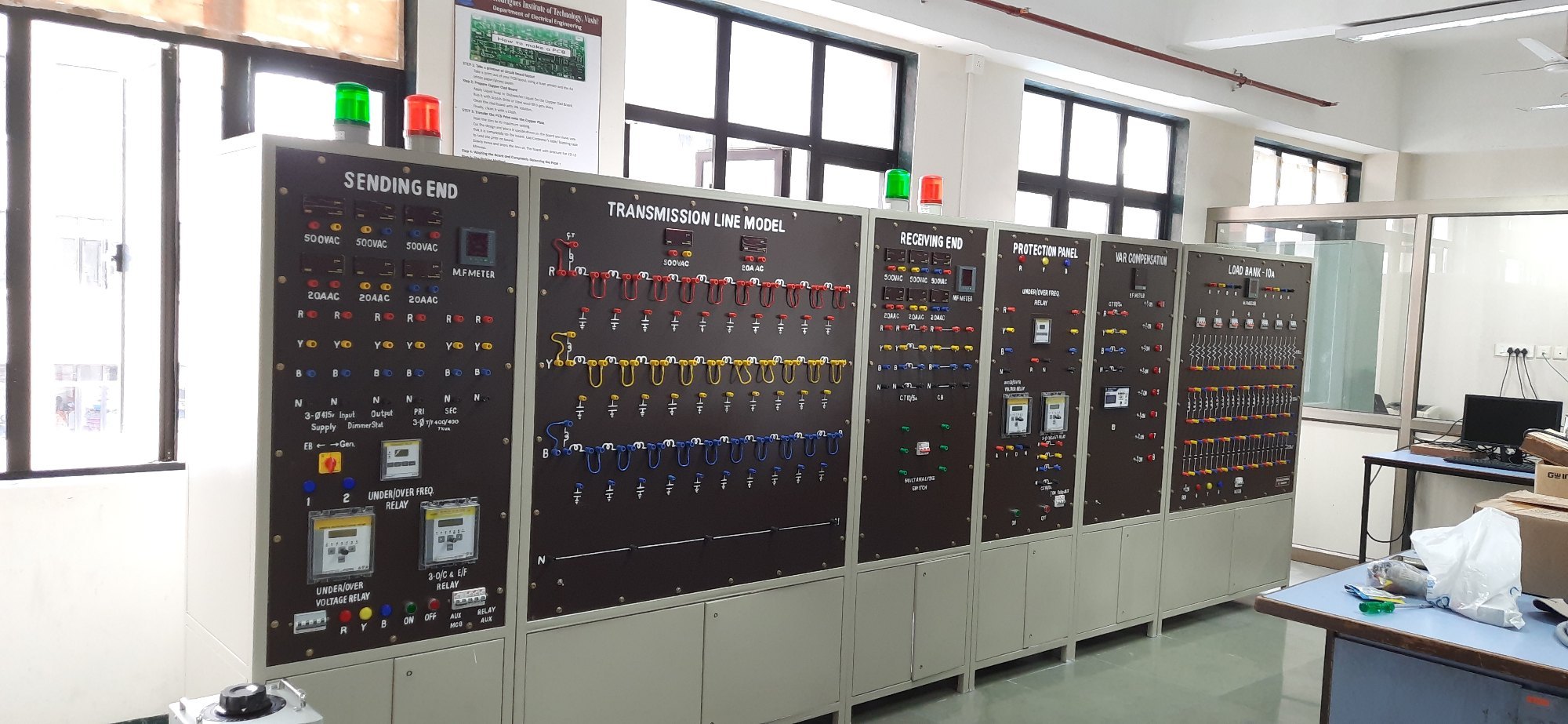

  • Supply, engineering, erection and commissioning for Transmission Line Simulation panel of 400KV over 1.500 KM.
  • Remote monitoring of the variable load data and other energy monitoring data over ethernet and wifi based communication, under various simulated conditions.

End User & Customer– DALMIA CEMENT EAST LIMITED

Project Details

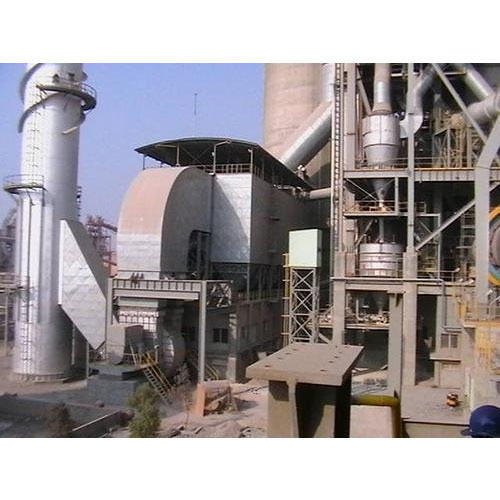

  • Commissioning of 315KW Sinamics G120P drive for ID fan application of bag house filter.
  • Supply, erection, engineering and commissioning of 22 KW Sinamics G120C drive panel with profibus communication for Belt conveyor.​

End User & Customer – THE EMPIRE JUTE CO. LTD.

Project Details

  • 5 step speed control of 56 nos. of spinning frame (AC Drives – MM420, MM440, FC302, V20) by PLC control.
  • Shift report generation through WinCC 5.1 in customized file format and inserting the data in plant database (ORACLE).
  • HMI development in IoT based platform to monitor the current data and trending report data remotely in customized web based software and mobile app.

End User & Customer– THE EMPIRE JUTE CO. LTD.

Project Details

  • RFID based weighing data logging solution for daily production of jute spindle.
  • Acquisition and collating machine wise and operator  wise weight data through RFID system, PB station, serial interfacing with weight indicator and incorporating in plant based database (ORACLE).


End User – TATA STEEL LIMITED

Customer – TATA CONSULTANCY SERVICES

Project Details

  • Consultancy services on Ferro Alloy and Minerals Division automation Phase I, II and OMQ-Coal mines automation.​

End User & Customer – MADHU JAYANTI INTERNATIONAL PVT. LTD.

Project Details

  • Data acquisition from tea bag processing machines.
  • Instrumentation, hardware designing, engineering, logic development and commissioning.
  • HMI development, real time report generation and operation manual preparation.
  • Data acquisition from 10 machines and incorporating the time series data in ORACLE database.


End User – J K INDUSTRIES

Customer – ONT ENGINEERING CONSULTANCY

Project Details

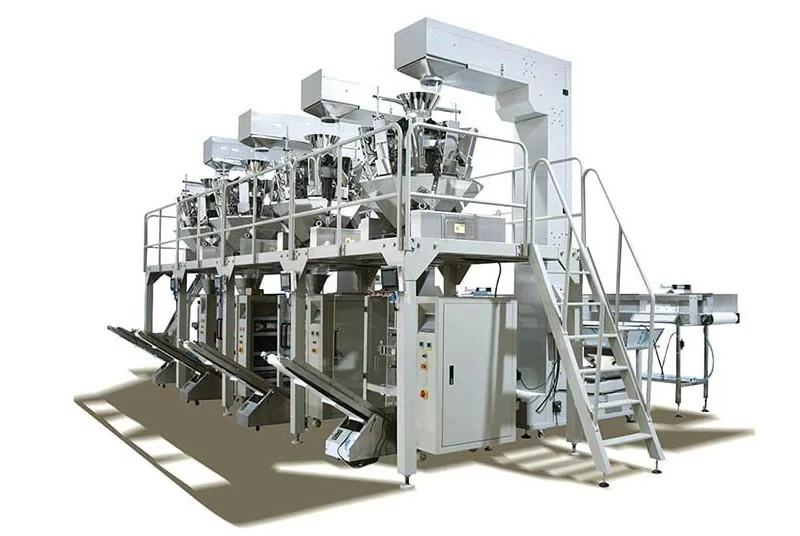

  • Process: weighing process automation in the bagging system of animal food using mini PLC and Touch panel.
